Not All ZVI is Created Equal: How the Manufacturing Process Can Impact Project Outcomes

05/11/21 By: Eliot Cooper

In the remediation industry, iron is not just iron: manufacturing, storage, design, size and application affect how a zero valent iron (ZVI) particle will react. When a remedy is designed without accounting for these variances, it creates the potential for cost overruns and less-than-optimal results.

In this blog post, we’ll talk about how different ZVI manufacturing processes affect the resulting amendments, so you’ll be able to select the one most appropriate for your site conditions.

If you'd like to learn about the basics, read our blog, ZVI 101: What is ZVI Emplacement and How does it Work?
If your interested in more read, What you Need to Know about Distributing Colloidal ZVI in High-K Transmissive Zones.

Why does the ZVI manufacturing process matter?

ZVI creates and maintains very low oxidation reduction potential (ORP) conditions, while simultaneously providing buffering capacity to maintain a neutral pH level. The high surface area, along with being a material totally devoid of oil or grease, promotes higher electron fluxes and slower surface passivation. These characteristics are true of all ZVI, but manufacturing processes can alter them. Some processes may create more surface area, and others may change the hydraulic conductivity or iron content of the amendment.

These differences can impact the efficacy of your remediation strategy, which is why it’s important to understand the basics about each manufacturing process.

What are the different ZVI manufacturing processes?

Companies worldwide have spent billions of dollars learning how to manipulate ZVI particles for different industries. A majority of ZVI is manufactured by four processes:

Conventional regrind
Atomized iron
Sponge iron
Electrolytic iron

The wide variations in these processes results in differences in the appearance and performance of the ZVI, such:

Size and distribution
Hydraulic conductivity and porosity
Iron content and contamination
Surface area and morphology
Reactivity
Longevity
Application

Let’s talk about the characteristics of the ZVI produced by each manufacturing process.

Conventional Regrind

When ZVI is manufactured using this process, the resulting amendment characteristics include:

Flat with minimal pits or pores
Typical surface area of 0.02 – 0.04 m²/g
Porosity 0.46 to 0.58
Hydraulic Conductivity 0.001 to 0.2 cm/sec
Typical ZVI Content of 85-95%
Grease/oil and foreign metal contamination
Variation dependent on source material

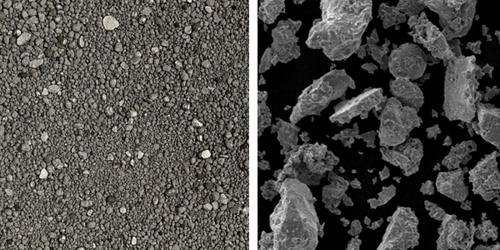

Zero valent iron (ZVI) produced using the conventional regrind method

Atomized Iron

When ZVI is produced using this method, the characteristics include:

Typical surface area of 0.08 – 0.2 m²/g
Porosity 0.5 to 0.65
Hydraulic Conductivity0.1 to 0.2 cm/sec
High Iron Content, >95%

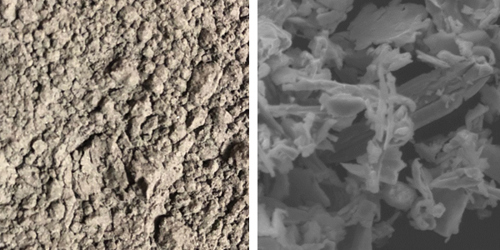

Zero valent iron (ZVI) produced using the atomization process

Sponge Iron

When the sponge iron manufacturing method is utilized, the ZVI produced has characteristics including:

Tightly inter-wound microstructures and micro-flakes
Sponge iron media microstructure has more void volumes
Typical surface area of 0.2 – 0.4 m²/g
Porosity 0.69 to 0.72
Hydraulic Conductivity 0.2 to 0.4 cm/sec
High Iron Content, >98%

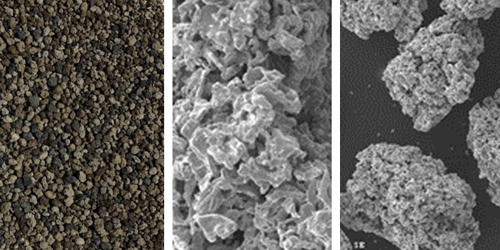

Zero valent iron (ZVI) produced using the sponge iron method

Electrolytic Iron

With this manufacturing process, the ZVI has characteristics including:

Specifically derived from chemical electrolysis of iron compounds, assuring the highest purity ‘food-grade’ products available anywhere in the world
Complex surface morphology with fibers and sharp edges
EI has surface area values between of 2.1 – 4.5 m²/g
Ultra-High Iron Content of >99.9%

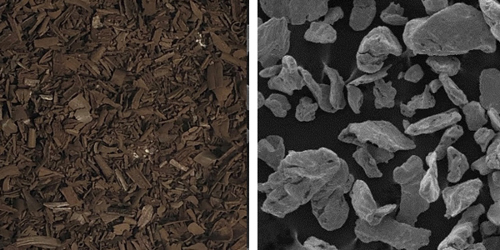

Zero valent iron (ZVI) produced using the electrolytic iron process

ZVI REMEDIATION RESOURCES

Hopefully this information helps you better understand the difference manufacturing can make in your ZVI amendment, and what you need to consider to optimize project outcomes.

Have questions now? You can always email me at [email protected].
